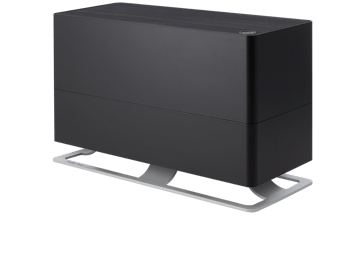

Oskar big
US$ 269.00
Product information Oskar big
Thanks to his unique V4 filter technology, the powerful humidifier is the ideal choice for large rooms. With his 6-liter water tank and his humidification output of 700 g/h, the evaporator Oskar big is one of the largest in his class. Thanks to his integrated hygrostat, the economical evaporator enables precise humidification.
Important purchasing advice
We recommend a more powerful humidifier for Minergie houses (low energy or passive houses) or apartments for which calculations should be based on twice the room size.
The reason for this lies in the continuous exchange of air: cold and dry outdoor air is heated up and channelled indoors. The moisture produced by people, animals, furniture, plants, cooking, showering, etc. is quickly directed outside by the continuous exchange of air, usually resulting in extremely dry air indoors. Controlled ventilation systems therefore have the same effect as open windows.
| Product family | Humidifier |
|---|---|
| System | Evaporator |
| Color | black |
| Accessories (included) | 1 Water Cube, 4 humidifier filters |
| Room size m² | 100 |
| Room size m³ | 250 |
| Capacity | 700 g/h |
| Power level | 4 |
| Power consumption | 8 – 30 W |
| Water tank capacity | 6.0 l |
| Noise level | 25 – 46 dB(A) |
| Weight | 4.7 kg |
| Dimensions | 470 x 290 x 200 mm |
Awards
Instruction manual and more
Video tutorials
Automatic switch-off
Oskar big switches off automatically when there is no water in the appliance. He can be easily refilled through the flap opening.
Ideal for large bedrooms

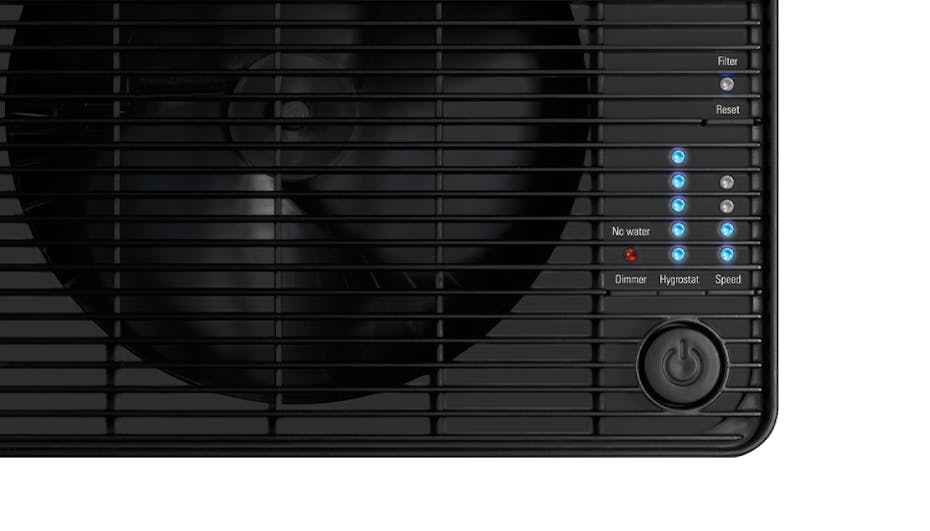

Oskar big is excellent for the bedroom because he is hardly audible. Moreover, his LEDs can be dimmed or switched off in night mode.
Reminder function
To remind you of the often neglected but important replacement of the filters, Oskar big has a reminder function.
Good to know
Find important information here
Attention: Never immerse the device in water (danger of short-circuit).
Daily: Fill the device with fresh, cold tap water. If the device is not going to be used for several days, empty the water from the lower part beforehand and if necessary, clean it with a drop of washing-up liquid and a clean cloth. Fill the lower part with fresh water before putting the device into operation again.
Every 2 weeks: First remove the filters and the Water Cube™. Clean the inside of the lower part thoroughly every 2 weeks using a drop of washing-up liquid, warm water and a soft, clean cloth, sponge or brush. Then rinse out the lower part thoroughly with cold water and put back the filters and the Water Cube.
Approximately every 4 weeks (depending on the water hardness in each case): First remove the filters and the Water Cube™. If there are limescale deposits inside the lower part, we recommend that you use Stadler Form Cleaner & Descaler. Alternatively, you can use a household descaling agent or vinegar. Then rinse out the lower part thoroughly with cold water and put back the filters and the Water Cube. For hygienic reasons, the filters should be replaced every 2-3 months.
Video Cleaning
Regularly as required: To clean the outside, rub with a damp cloth and then dry thoroughly.
At the end of the season: Before putting away the device at the end of the season, clean it thoroughly inside and out and let it dry completely. Descale the lower part as described above. Clean the fan blades in the upper part with a damp cloth and then wipe them dry. Insert new humidifier filters and a new Water Cube so that your device will be ready to be put into operation at the start of the next season.
- Type of fragrance (synthetic, natural, ingredients, etc.)
- Room temperature and relative humidity (the more humid the air, the stronger the fragrance will be)
- Room size (the smaller the room, the more intense the fragrance)
In principle, you can increase the intensity of a fragrance by adding a little more fragrance oil. The strength of a fragrance will depend on the fragrance itself. Natural fragrances are often more discreet than synthetic ones and certain ingredients are more dominant than others.
It should also be remembered that first and foremost, the device is a humidifier. Its main focus is to provide humidity in the room and because of that, the intensity of its fragrance will never be as strong as the fragrance from an aroma diffuser.
Set the output to the highest level.
For the room size to be right, not only the room height (standard 2.5 m) but also whether or not the doors to the room are closed is a determining factor. If the doors to the room are left open, the adjacent rooms will also be included in the total area. If the relative humidity is low (below 35%), the humidity will not increase immediately. That is because the floors, furniture and walls absorb the moisture first before it ends up in the air. It can take up to two weeks for everything to absorb sufficient moisture for the humidity to start rising. As long as you keep having to top up the water regularly, your Oskar big is working properly.
If the humidifier filters are more than 2 months old or the upper part is hard and no longer saturated with water, the filters should be replaced.

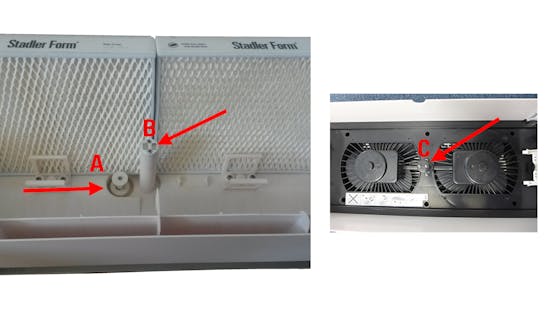

Please start off by checking that the float gauge (see A) can move up and down. It may be that it has become stuck due to excessive limescale/dirt. Descale the water tray regularly in order to ensure fault-free operation.
Oskar big consists of two parts: an upper part and a lower part. If the upper part is not seated properly on the lower part, the float gauge sensor will not make contact with the electronics in the upper part. Seat the upper part correctly to restore contact.
If neither of the two cases above apply, lift off the upper part and clean the contacts (see B und C) with a damp cloth. Then dry them thoroughly and put the upper part back on the lower part.
This FAQ only applies to devices produced before September 2019: (SN number 1909 xxxxx). Devices with a production date of September 2019 or later are not affected by this problem. If you have one of these devices and this problem occurs, please contact our customer service department.
Discolouration which is slightly yellowish or brownish is normal. Discolouration is caused by the substances in the mains water or the air. The poorer the water quality, the quicker the humidifier filter will become discoloured. Although this does not look pleasant, it is harmless as long as it is not due to mould. The discolouration will not affect the performance of your humidifier either. If you have not been using the humidifier filter for very long, you can rinse it thoroughly, turn it over and reuse it. If the humidifier filter is more than 2 months old, we recommend that you replace it.
It is also possible for the top part of the humidifier filters to become hard. During the evaporation process, the lime present in the water is collected in the humidifier filter as limescale. The harder the water, the quicker the humidifier filter will become hard. If you use water from a water softener which operates based on the principle of ion exchange, salt may collect in the humidifier filter rather than limescale. If you have been using the humidifier filter for less than 2 months, you can rinse it thoroughly with water, turn it over and put it back again. It is possible that you may notice an odour after you have turned over the humidifier filter depending on how contaminated the filter is by constituents in the air or the water.
If your Oskar big or the humidifier filters smell unpleasant, there may be various reasons for this: water and air quality, a worn-out filter or even the fact that you have not used your Oskar big for a long time and he has still water in his tank. In any case, we recommend that you clean and descale the device thoroughly. If you have been using the filter for less than 2 months, you can rinse it thoroughly with cold, clean water, turn it over and continue to use it.
