Product information Charly floor

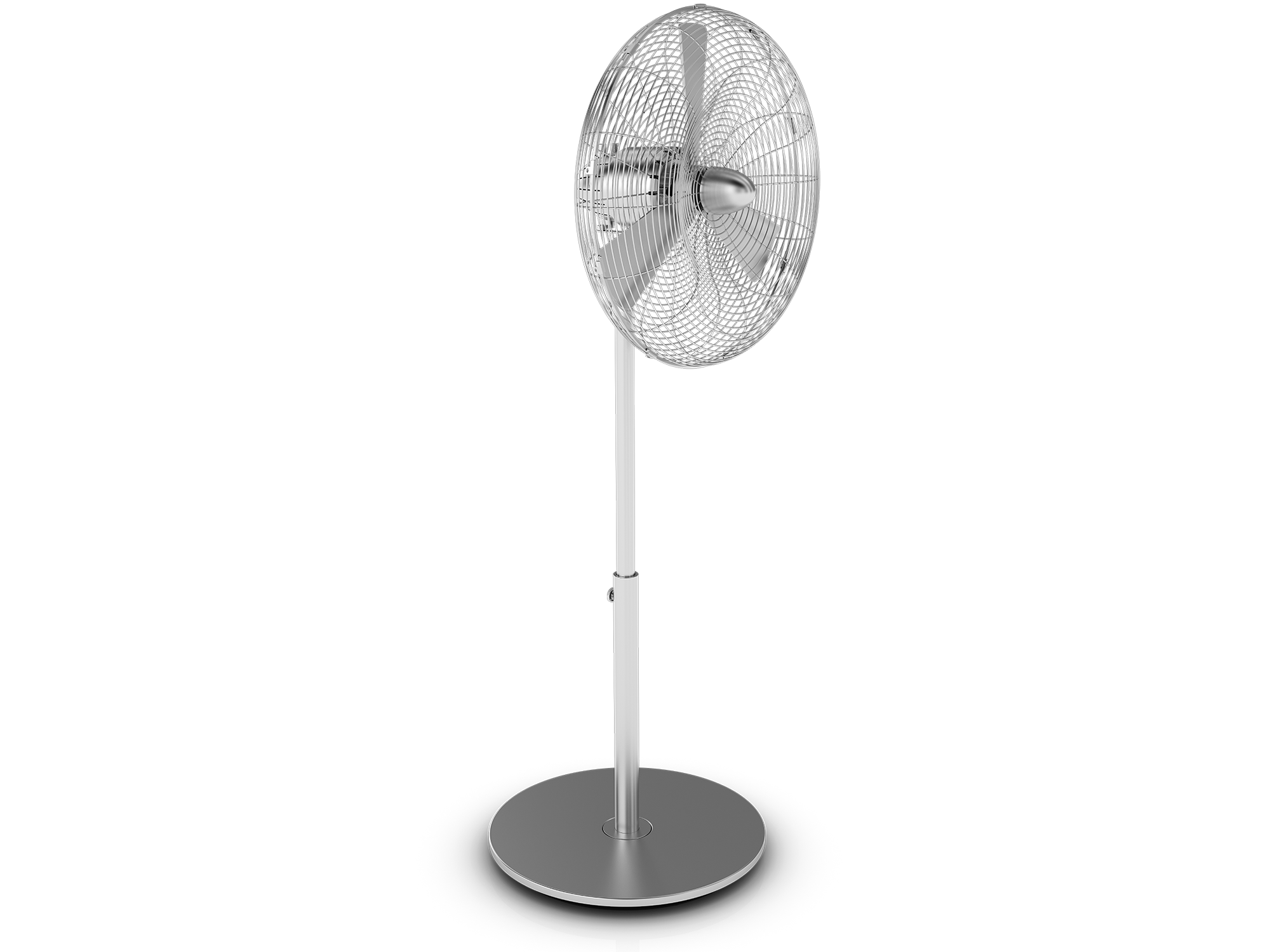

The fan Charly has already achieved cult status. The exceptional wind machine is now equipped with oscillation. Charly thereby distributes the cool air steadily in the room. With a design resembling a jet aircraft turbine and an air-moving performance to match: three aluminium blades allow this fan to shift up to 6000 cubic meters of air an hour. But thanks to his rounded, die-cast zinc base, the ventilator Charly remains firmly anchored on the ground, while it is still adjustable.
Product family | Fan |
---|---|
System | Pedestal fan |
Color | silver |
Capacity | 6000 m3/h |
Power level | 3 |
Power consumption | 36 – 60 W |
Noise level | < 56 dB(A) |
Weight | 4.5 kg |
Dimensions | 450 x 472 x 280 mm |
Instruction manual and more
Video tutorials
Good to know
Find important information here
Charly floor’s motor housing is connected to his telescopic tube by means of a socket screw located on the side. This can work loose over time. You can secure Charly little’s head in an upright position by tightening the screw.
To clean the fan blade, remove the securing screw, undo all the fixing clips and carefully remove the protective grille from the front. Now you can wipe the fan blade with a damp cloth and then dry it thoroughly. After cleaning, put the protective grille back on the device (fit the top positioning clip), fasten all the fixing clips and tighten the securing screw firmly.
